Information about Boiler Short Cycling: Causes, Diagnosis and Repair in BC Homes
Boiler short cycling happens when a boiler fires, shuts down, and then restarts again after an unusually short interval. A normal heating system cycles according to heat demand, water temperature and controls. Short cycling is different: the burner may run for only a few minutes, stop before the home is comfortable, and repeat the pattern throughout the heating call.
For homeowners, the result can be uneven comfort, noise, higher wear on ignition and control components, and disappointing efficiency. For a technician, short cycling is not a diagnosis by itself. It is a symptom that requires the heating load, water flow, controls and boiler output to be checked as one system.
What Counts as Boiler Short Cycling?
There is no single run-time number that defines short cycling for every boiler. Cycle length depends on outdoor temperature, boiler type, system water volume, zone size, control strategy and whether the boiler modulates its firing rate. A small heating zone on a mild day may legitimately produce shorter cycles than a whole-house call during cold weather.
The important question is whether the boiler is shutting down because the thermostat is satisfied, or because another limit is being reached first. If the boiler repeatedly hits its high-temperature limit while the thermostat still calls for heat, the system may have a flow, sizing or control problem.
1. Oversized Boiler Output
An oversized boiler can add heat to the water faster than the building and radiation can absorb it. Water temperature rises rapidly, the boiler reaches its target or limit, the burner shuts off, and then it restarts when the water cools.
This is especially common after insulation, window or air-sealing upgrades reduce the building load while the original boiler remains in place. It can also happen when a replacement boiler is selected mainly by matching the old nameplate instead of checking the current heating load.
Modern modulating boilers can reduce firing rate, but even a modulating boiler has a minimum input. If the active zone requires less heat than the boiler’s minimum output, cycling can still occur.
2. Low Water Flow Through the Boiler
Hydronic boilers depend on adequate water flow to move heat away from the heat exchanger. Restricted flow causes boiler water temperature to rise too quickly.
Possible causes include:
- A weak or failed circulator
- Air trapped in the system
- Closed or partially closed isolation valves
- A clogged strainer
- Zone valves that are not opening fully
- Sludge or debris in older piping
- Incorrect pump speed
- Improper primary-secondary piping
A technician should compare supply and return temperatures, circulator operation, pressure conditions and the manufacturer’s required flow range. Simply replacing the thermostat will not correct a hydraulic problem.
3. Small-Zone Problems
Multi-zone systems can short cycle when only a small zone calls for heat. A bathroom, basement or small addition may not be able to absorb the boiler’s minimum output.
Solutions depend on the system. They may include control changes, zone redesign, hydraulic separation, a buffer tank, emitter changes or equipment with a lower minimum firing rate. There is no universal fix, which is why short cycling should be evaluated during actual zone operation.

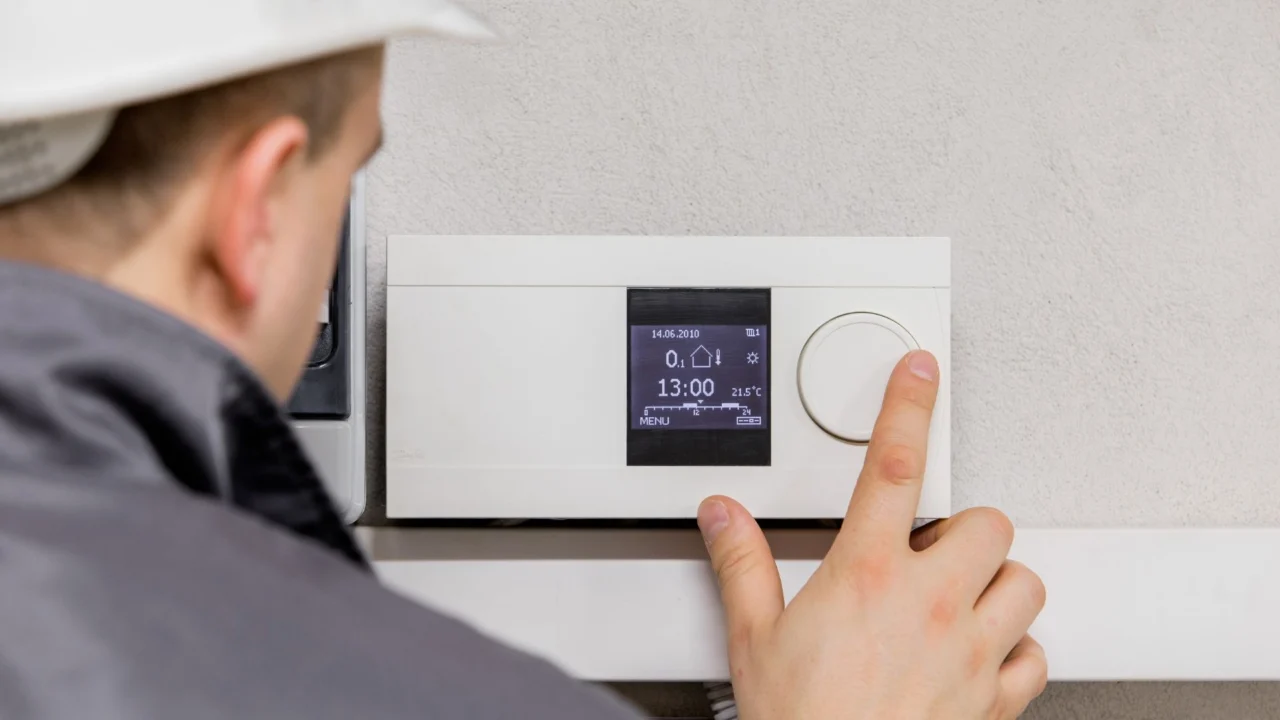

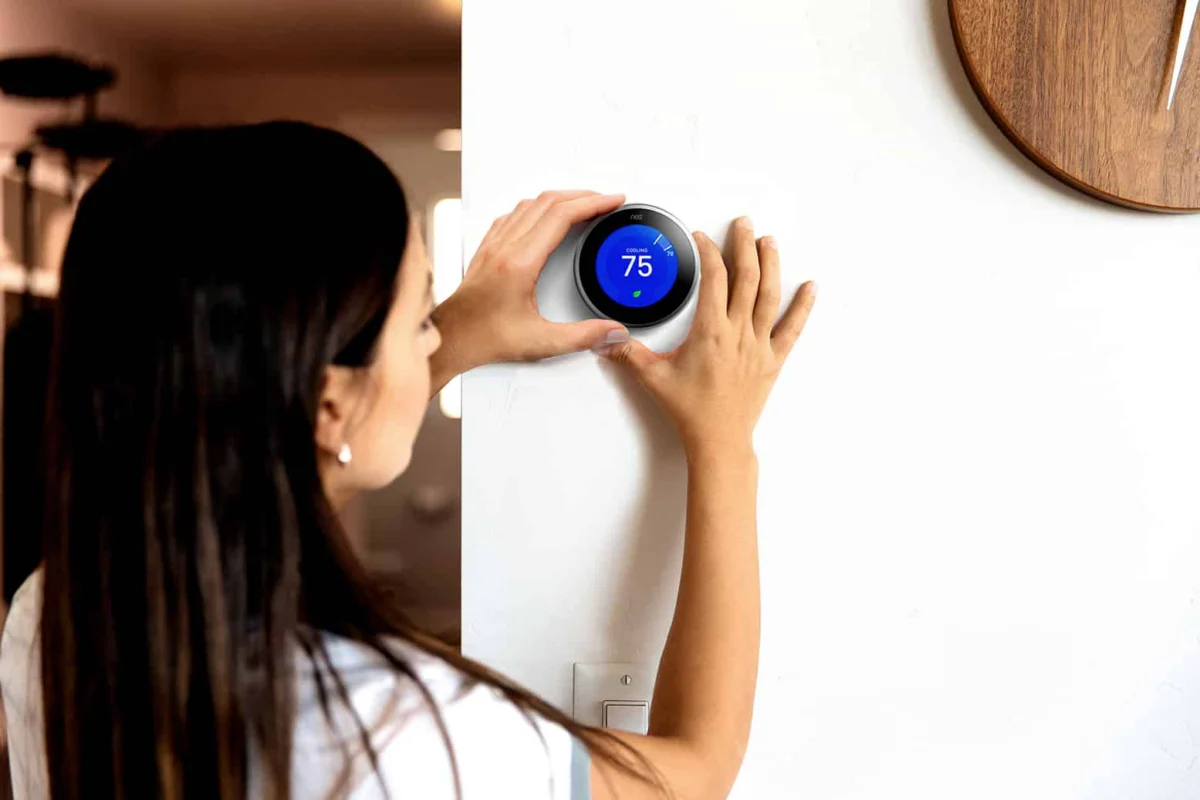

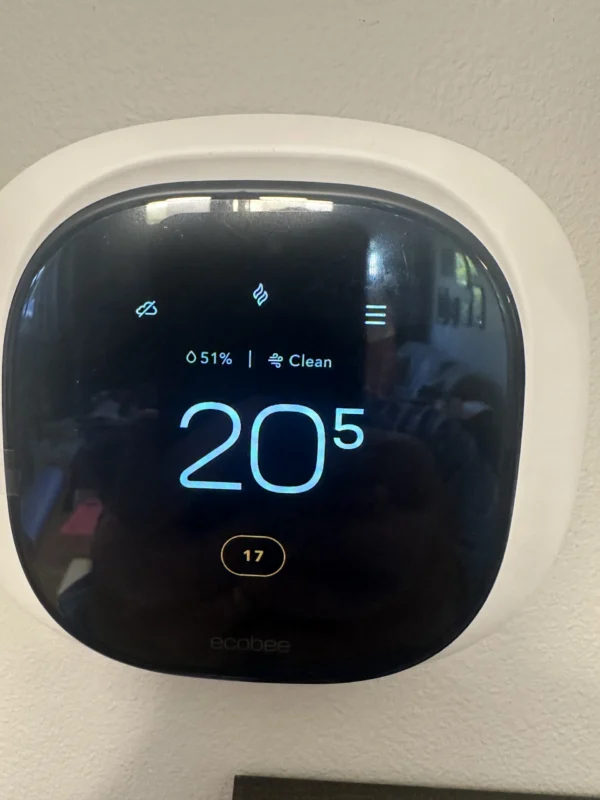

4. Thermostat Location or Control Problems
A thermostat near a supply register, fireplace, sunny window or kitchen can satisfy too quickly while other rooms remain cool. Loose wiring, incorrect anticipator settings on older thermostats, aggressive cycle-rate settings or incompatible controls can also cause unnecessary starts and stops.
Before blaming the boiler, verify that the thermostat is reading room temperature correctly and that the control signal remains stable throughout the heating call.
5. Aquastat, Sensor or Limit-Control Issues
Boilers use temperature sensors and limit controls to manage burner operation. A sensor that is out of calibration, poorly attached, incorrectly located or affected by wiring problems can cause premature shutdown.
On modern boilers, diagnostic information may show the target temperature, actual supply temperature, return temperature, firing rate and reason for shutdown. That data is more useful than guessing from burner noise alone.
6. Air in the Hydronic System
Air can reduce circulation, create noise and interfere with heat transfer. In severe cases it can contribute to rapid temperature rise at the boiler while distant radiation remains cool.
Air problems may be related to poor purging, low system pressure, failed automatic air vents, expansion-tank issues or air entering through system components. Repeatedly bleeding one radiator without correcting the source may provide only temporary relief.
7. Expansion Tank or Pressure Problems
The expansion tank absorbs the increase in water volume as the system heats. If the tank has failed or lost its air charge, system pressure can swing excessively. While this is not the most common cause of short cycling, abnormal pressure can interact with pumps, safety controls and automatic fill components and should be checked during diagnosis.
8. Dirty Heat Exchanger or Combustion Problems
A dirty heat exchanger, blocked passage or combustion problem can cause abnormal temperature rise or safety shutdowns. High-efficiency condensing boilers also depend on correct venting, condensate drainage and clean combustion surfaces.
Combustion-related problems require proper instruments and manufacturer procedures. They should not be diagnosed by flame appearance alone.
How a Technician Diagnoses Short Cycling
A useful diagnosis follows the sequence of operation instead of replacing parts at random. Typical checks include:
- Confirm the thermostat call and active zone
- Record boiler supply and return temperatures
- Check temperature rise across the boiler
- Verify circulator and zone-valve operation
- Check system pressure cold and hot
- Review control targets, limits and differential settings
- Confirm sensor readings
- Compare boiler input and minimum modulation with the active heating load
- Inspect venting, combustion and condensate systems where applicable
- Review piping arrangement and hydraulic separation
Why Repeated Short Cycling Matters
Every burner start places mechanical and electrical stress on ignition components, relays, gas valves and controls. Excessive starts can increase wear even when the boiler still produces heat. Short cycles can also prevent a condensing boiler from operating under the return-water conditions needed for best efficiency.
The correct goal is not to force the boiler to run continuously. It is to make cycle length appropriate for the actual load and system design.
When Short Cycling Appears After a Repair
If short cycling starts immediately after a pump, zone valve, thermostat, boiler or piping change, the recent work should be reviewed first. Pump orientation, valve position, control wiring, sensor location and setup parameters can all affect cycle behaviour.
Boiler Short Cycling in Metro Vancouver Homes
Hydronic systems in Metro Vancouver range from older cast-iron boilers with baseboards to modern condensing boilers serving multiple small zones. Mild shoulder-season weather can expose sizing and minimum-modulation problems that are less obvious during colder conditions.
Royal Pro Heating Ltd. provides boiler repair and diagnostic service throughout Metro Vancouver. Homeowners in Coquitlam can also review our Boiler Repair in Coquitlam service page.
Frequently Asked Questions
Can a thermostat cause boiler short cycling?
Yes. Poor thermostat location, unstable wiring or inappropriate cycle settings can create frequent calls. However, if the boiler shuts off on water temperature while the thermostat continues calling, the problem is more likely related to flow, control limits, zoning or boiler output.
Is short cycling dangerous?
Short cycling is not automatically an emergency, but repeated cycling can signal a control, flow or combustion problem. If the boiler is locking out, overheating, leaking, producing unusual odours or showing a safety fault, it should be inspected promptly.
Will replacing the circulator fix short cycling?
Only if inadequate circulation is the actual cause. The pump should be evaluated along with valves, air, piping, pressure and boiler requirements before replacement.
Can an oversized boiler be fixed without replacing it?
Sometimes. Control changes, zoning strategies, buffer tanks or system modifications can reduce cycling depending on the equipment. The best option depends on the boiler’s minimum firing rate and the building’s load.
Bottom Line
Boiler short cycling should be treated as a system problem, not a single-component problem. The most reliable diagnosis compares heat demand, water flow, control logic and boiler output while the system is operating. That approach prevents unnecessary parts replacement and leads to a repair that addresses the actual cause.
