A frozen air-conditioning evaporator coil is a symptom, not a diagnosis. Ice forms when the coil surface stays below freezing long enough for moisture from the air to freeze on the fins. The underlying cause is usually related to airflow, refrigerant conditions, controls or system load.
1. Low Indoor Airflow
A dirty filter, blocked return, closed registers, a dirty evaporator coil or high duct static pressure can reduce airflow across the coil. With less warm air moving across the surface, coil temperature can fall below freezing.
2. Blower Motor or Speed Problems
A weak motor, incorrect speed setting, failed capacitor on applicable motors or ECM control fault can reduce airflow. Airflow should be measured and compared with equipment requirements.
3. Refrigerant Charge Problems
Low refrigerant charge can reduce evaporator pressure and temperature, increasing the risk of freezing. Overcharge and other refrigeration faults can also create abnormal operating conditions. Charge should be evaluated using manufacturer procedures.
4. Metering Device or Restriction Problems
A restricted TXV, piston, filter-drier or refrigerant circuit can starve part of the evaporator and create low suction conditions. Temperature and pressure measurements are required to separate these faults from low charge.
5. Low Cooling Load
Operating air conditioning in unusually cool outdoor or indoor conditions can reduce heat load on the evaporator. Some systems are not designed for low-ambient cooling without specific controls.

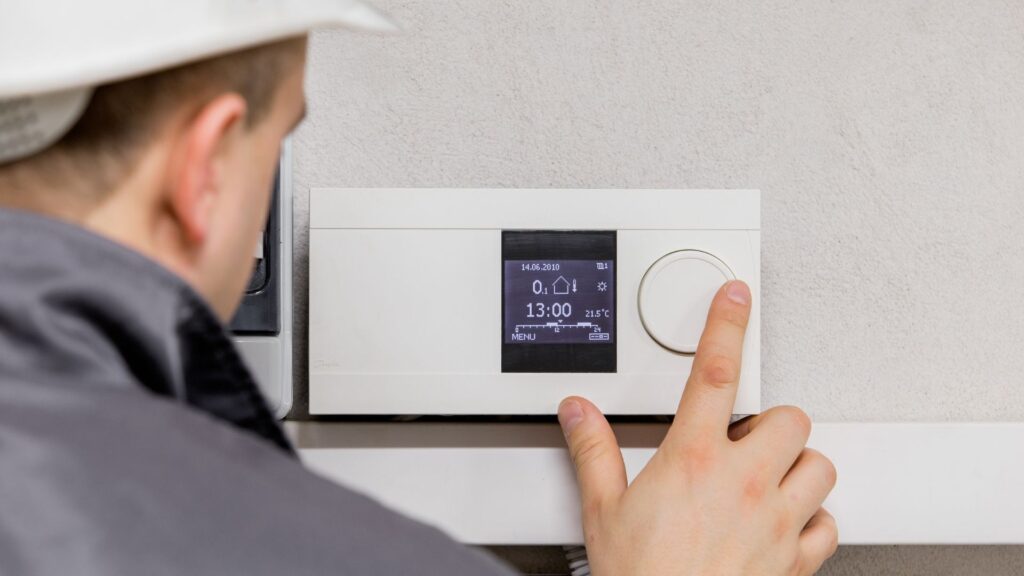

6. Thermostat or Control Problems
If the compressor continues running while the indoor blower stops, the evaporator can freeze rapidly. Relay, board and thermostat faults should be checked when blower operation is intermittent.
Why Ice Makes the Problem Worse
Once frost starts to cover the coil, airflow decreases further. Lower airflow makes the coil even colder and the ice layer can grow until most of the coil or suction line is frozen.
Correct Diagnostic Sequence
- Allow the coil to thaw before testing
- Inspect filter and return-air path
- Measure blower operation and static pressure
- Inspect the evaporator coil for dirt or restriction
- Check refrigerant pressures and temperatures under valid conditions
- Evaluate metering-device performance
- Confirm thermostat and blower-control operation
Do Not Keep Running a Frozen System
Operating with a heavily iced coil can reduce cooling, cause condensate problems after thawing and place additional stress on the compressor. The system should be allowed to thaw and then diagnosed.
Royal Pro Heating AC Service
Royal Pro Heating Ltd. provides air-conditioning repair and diagnostic service throughout Metro Vancouver. Burnaby homeowners can also review our Air Conditioning Service in Burnaby page.
Frequently Asked Questions
Can a dirty filter freeze an AC coil?
Yes. Severe airflow restriction can lower coil temperature enough for ice to form.
Does a frozen coil always mean low refrigerant?
No. Airflow, blower, control and metering problems can produce similar symptoms.
Can I just turn the AC back on after the ice melts?
The system may operate again temporarily, but recurring freezing means the root cause still needs to be diagnosed.
Bottom Line
Frozen AC coils should be diagnosed by measuring airflow and refrigeration performance together. Replacing refrigerant or filters without confirming the actual cause can leave the problem unresolved.
